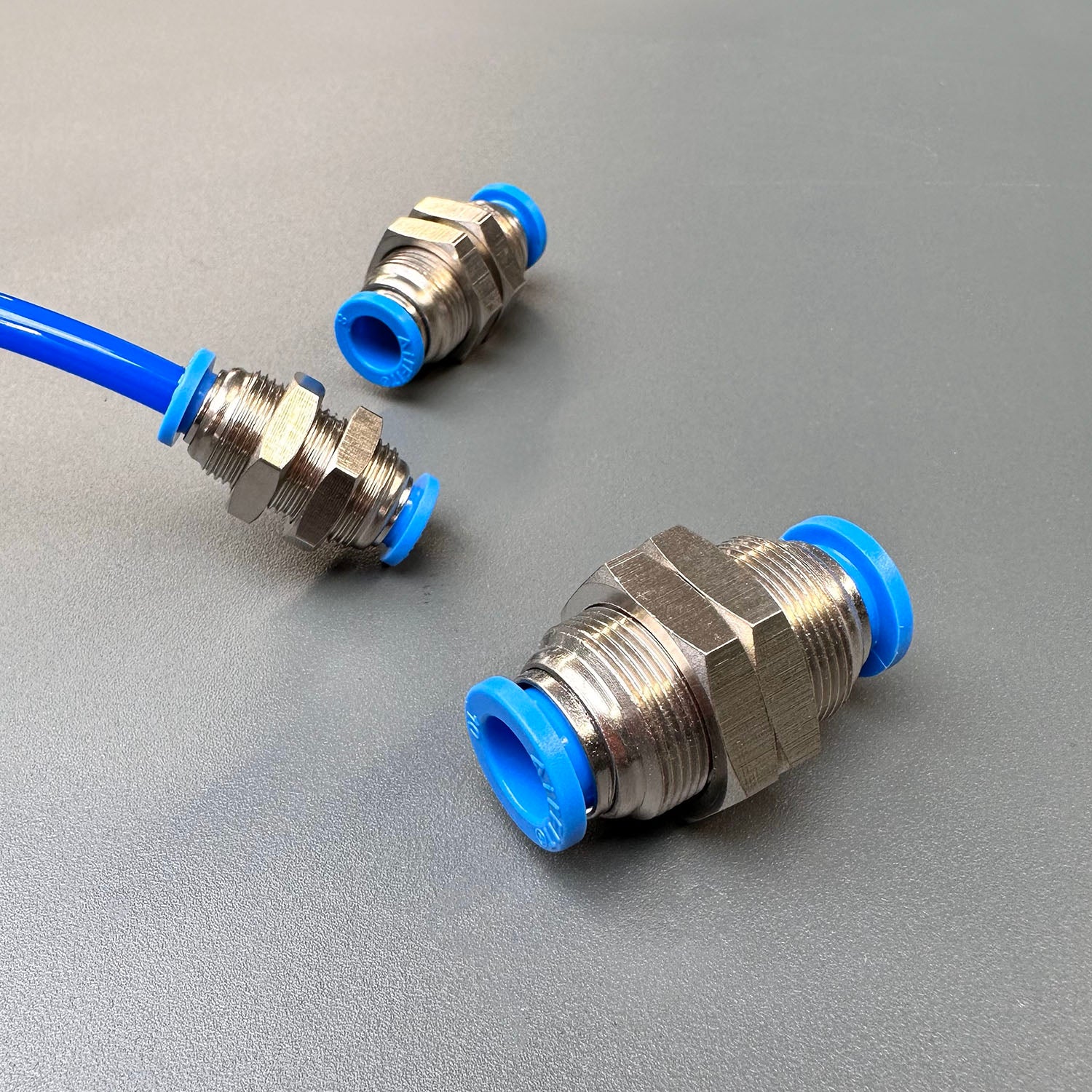

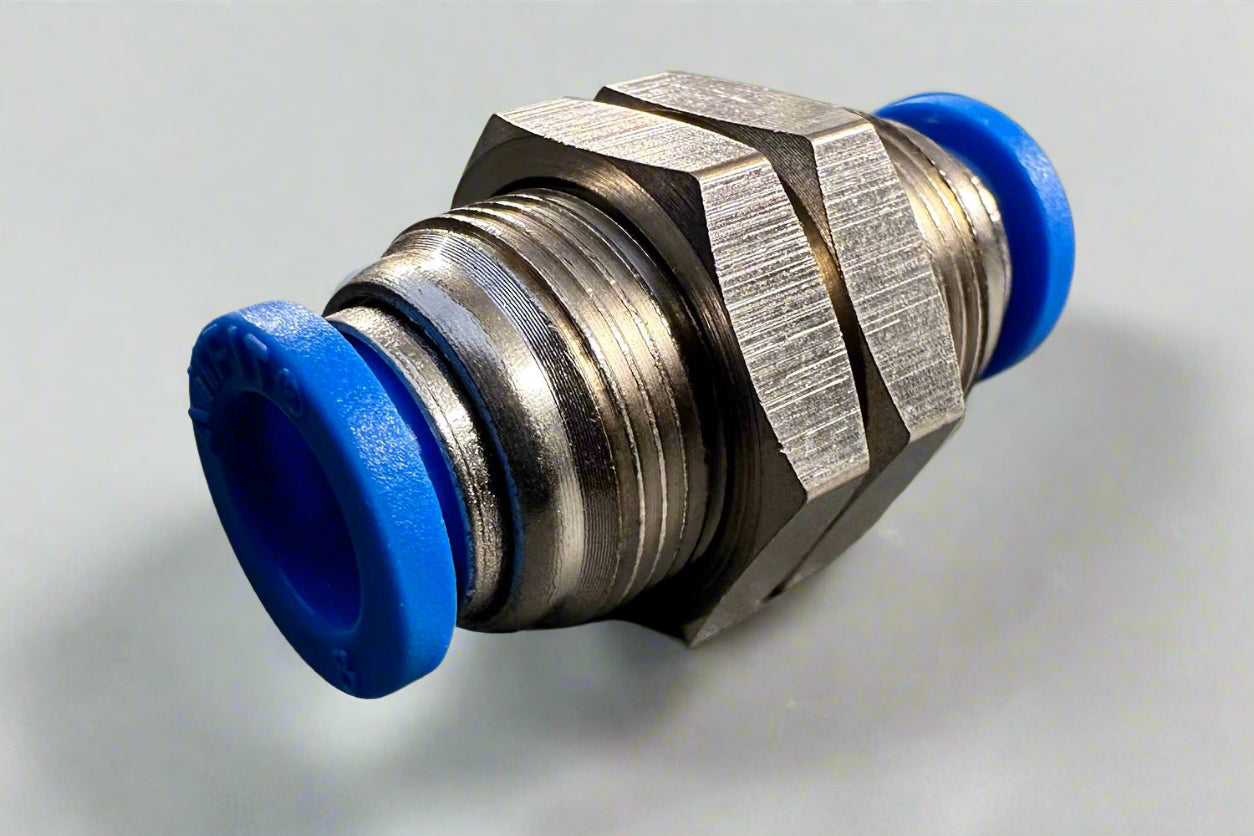

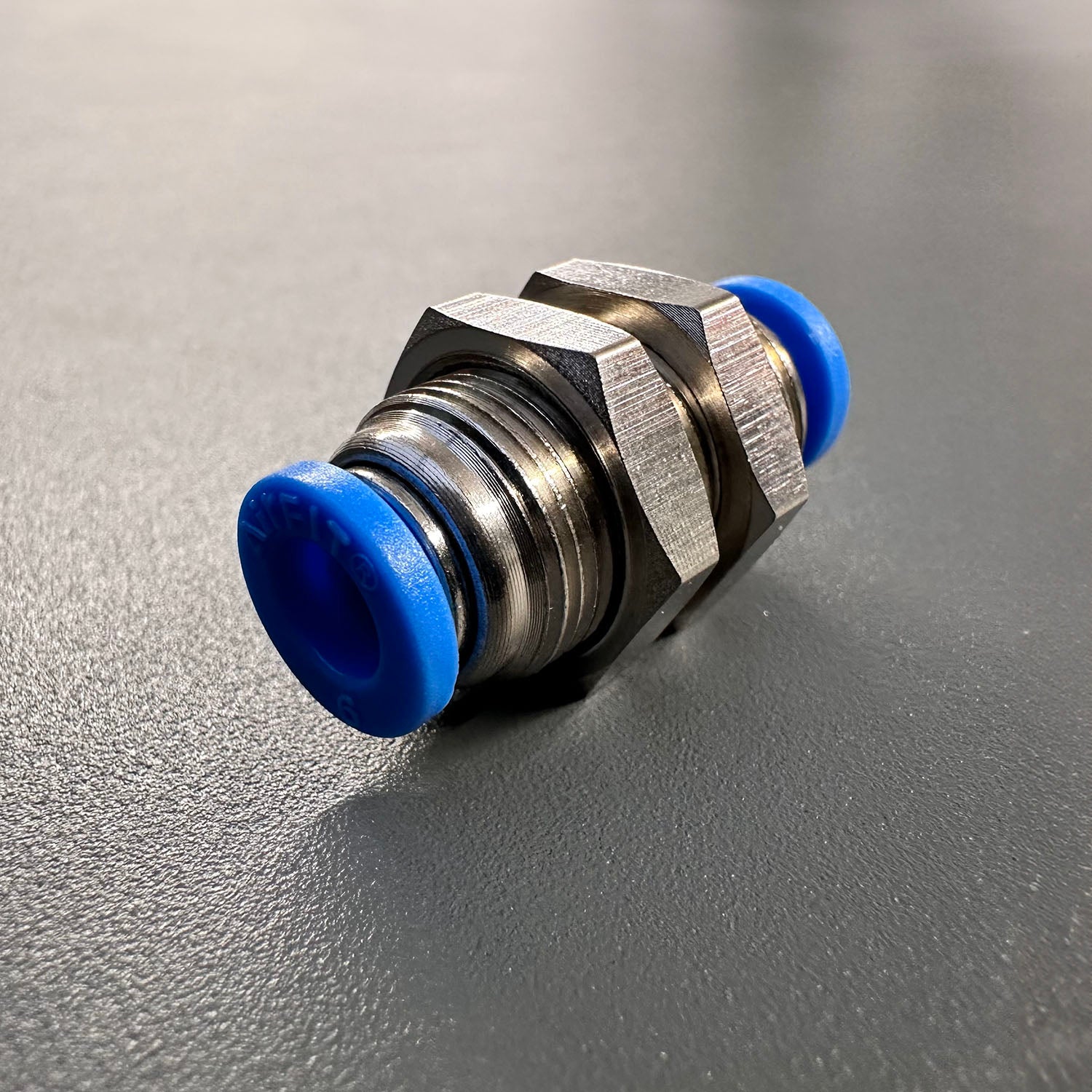

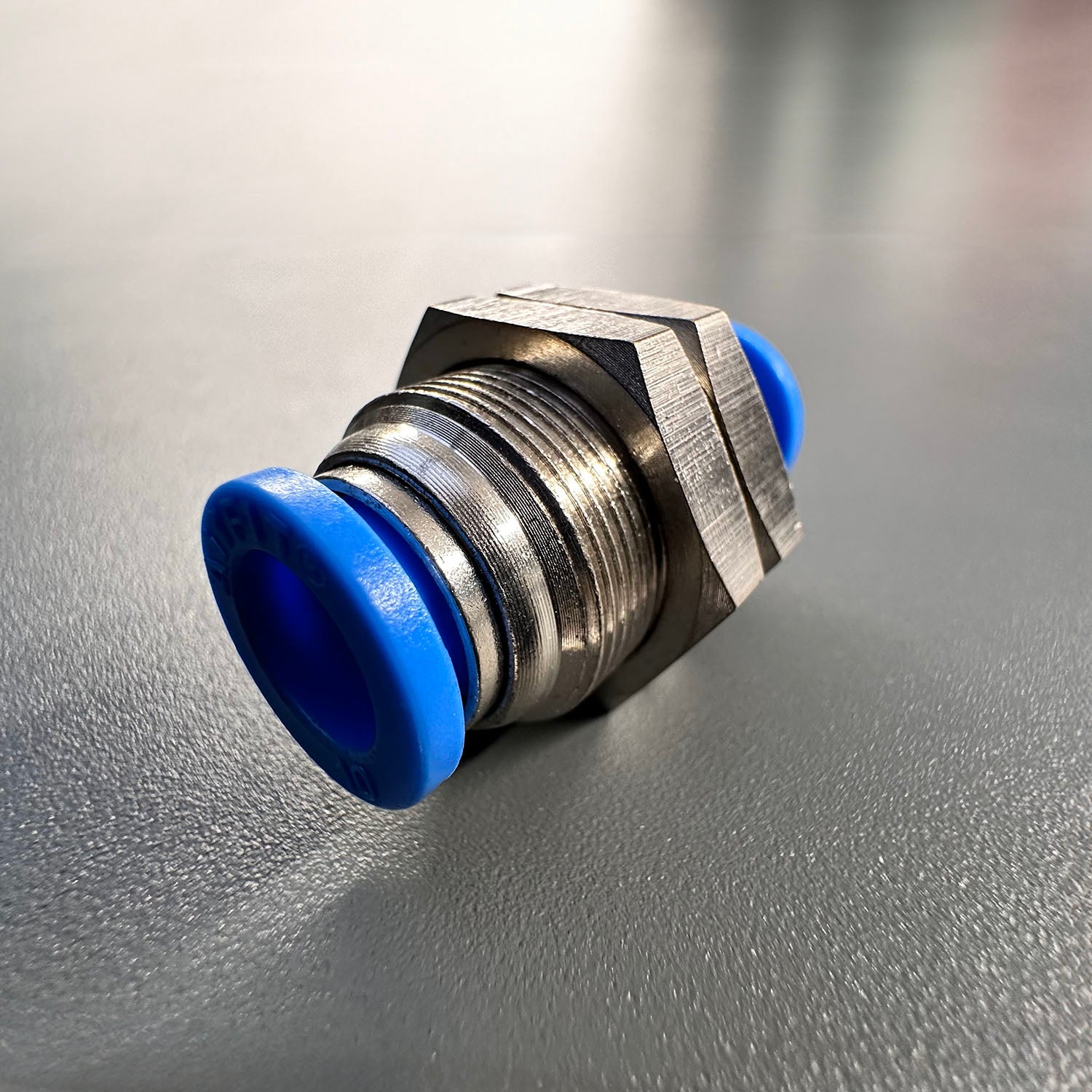

AirFit Panel Mount Straight Pneumatic Air/Water/Gas/Vacuum Line Fitting

AirFit Panel Mount Straight Pneumatic Air/Water/Gas/Vacuum Line Fitting

Secure Panel-Mounted Pneumatic Connector for Air, Water, Gas & Vacuum Systems

The AirFit Panel Mount Straight Connector is engineered for easy installation through control panels, walls, and enclosures, creating a clean, professional entry point for pneumatic tubing. With its push-in, tool-free connection and built-in mounting thread, this fitting delivers space-saving, secure, and leak-proof performance across air, water, vacuum, and gas systems.

Key Features:

• Panel Mount Design: Mounts securely onto panels, control boxes, walls, or bulkheads

• Straight-Line Flow: Maintains optimal air or fluid direction with zero obstructions

• Tool-Free Push-In Connection: Tubing connects in seconds — no thread tape or clamps

• Mounting Hardware Included: Threaded body and nut for quick, stable panel installation

• Flexible Tubing Compatibility: Connects to nylon, polyurethane, and polyethylene tubes

Technical Specifications

• Fitting Type: Straight Push-In with Integrated Panel Mount

• Mounting Type: Threaded body with locking nut for panel installation

• Material: Industrial-grade polymer

• Tubing Compatibility: Nylon, Polyurethane, Polyethylene

• Working Pressure: Up to 10 Bar (145 PSI)

• Temperature Range: -20°C to +60°C

• Media Compatibility: Air, Water, Vacuum, Inert Gases

• Certifications: CE & TÜV Approved

• Installation: Push-in connection, tool-free

• Disconnection: Manual push collar release

• Sold As: Single unit

Built for Professionals:

• CE & TÜV Certified for performance and safety

• Pressure-Tested to 10 Bar (145 PSI) for industrial-grade reliability

• Handles Harsh Conditions: Operates in freezing and high-heat environments

• Media Versatile: Suitable for compressed air, vacuum, water, and inert gas systems

• Durable Construction: Industrial polymer and precision seal components resist wear, vibration, and corrosion

Where to Use It:

• Control Panels & Enclosures: Clean, secure tubing entry points for compressed air

• Automation & Machinery: Ideal for robotics, sensors, valves, and actuators

• Production Facilities: Use in automotive, aerospace, packaging, and system control stations

• Fluid Control Panels: Simplify connections to compressors, tanks, or vacuum systems

How It Works:

• To Mount: Insert through a pre-drilled panel hole and tighten with the locking nut

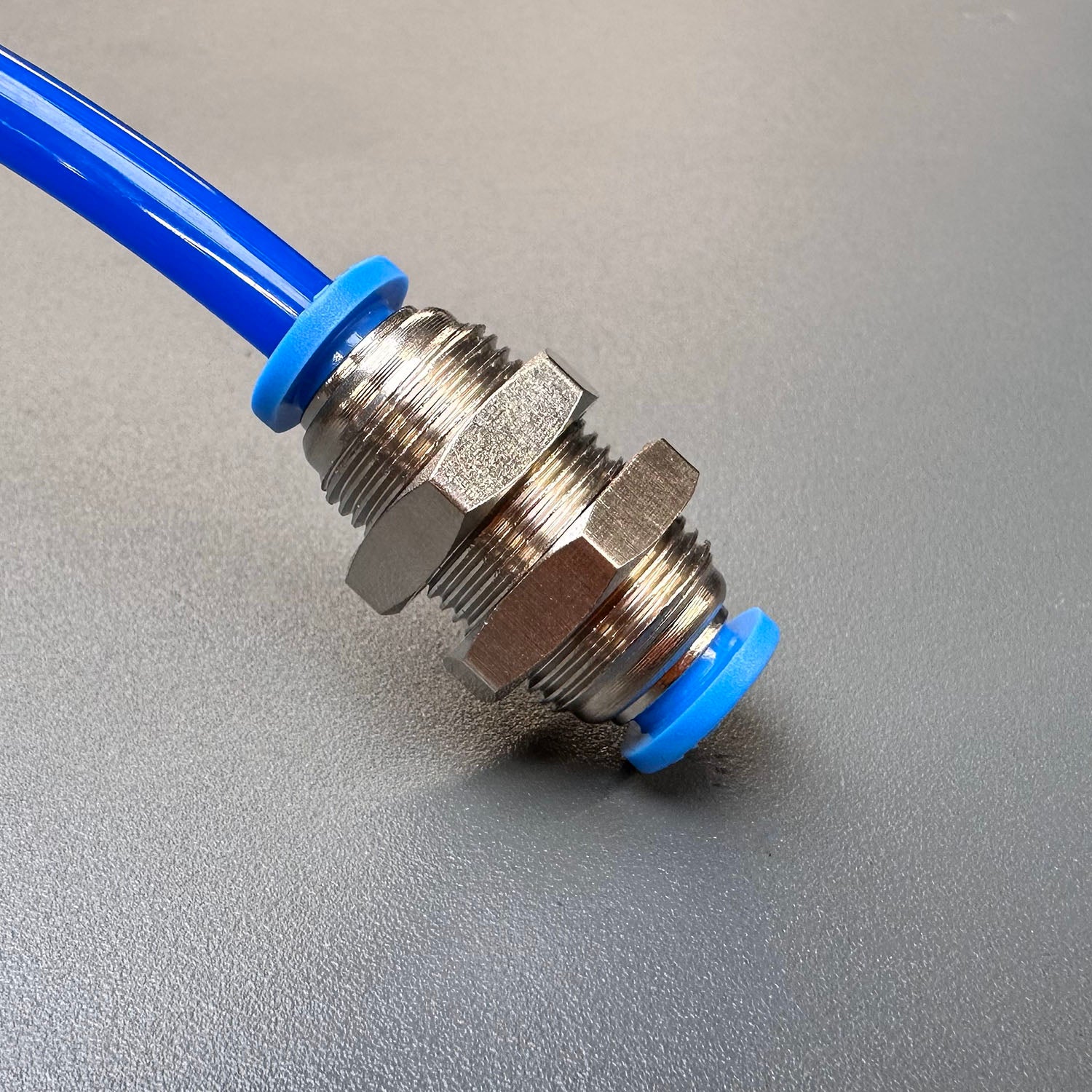

• To Connect: Push tubing into the connector until it clicks and seals

• To Release: Press down the blue collar and pull the tubing out easily

Please note: Each fitting is sold individually (not in packs)
