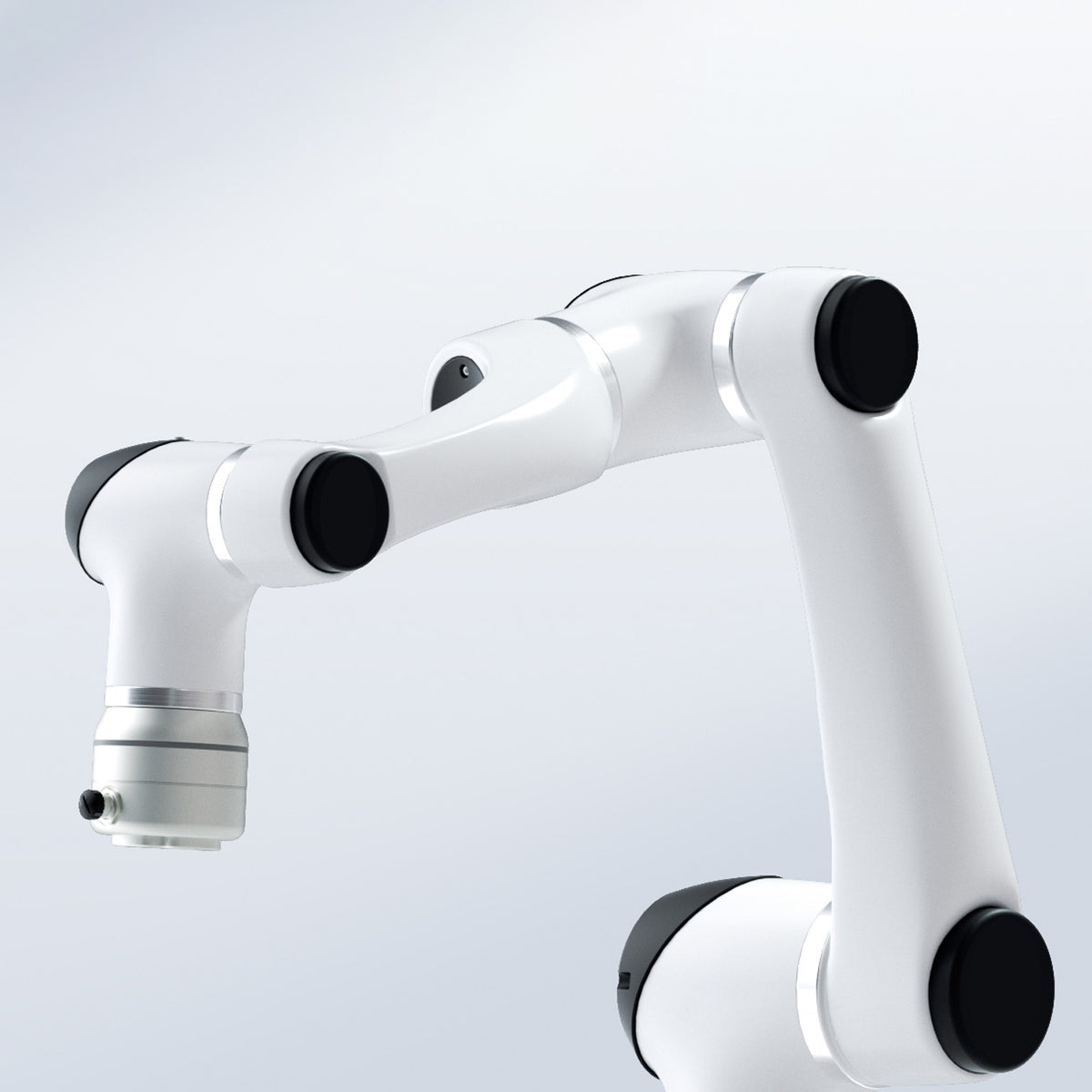

Nukeson HanBot PRO Cobot Collaborative Robot (4 Variants Available)

Nukeson HanBot PRO Cobot Collaborative Robot

These 6-axis collaborative robots can be used in automated integrated production lines. They are suitable for a range of tasks including assembly, picking, welding, grinding, spraying and other applications.

The Cobot adopts a unique double-joint module design, where one motion module contains two joints to form a unique kinematic structure, which not only differs from most collaborative robots on the market, but also provides more flexibility when working.

The PRO model adopts a new, elegant, practical surface treatment process that is more stable and reliable. With all these advantages, the HanBot PRO collaborative robot system offers a better human-robot collaboration experience and can support broader application scenarios.

Force Control Integration:

• Internal wiring with better anti-interference ability
• Constant force control for perfect trajectory
• Fast programming
• Soft control with smooth free-drive teaching
• Force exploration suitable to intelligent assembly which makes the small batches and flexible production of multiple varieties to be possible.

These models are just the base units, and do not come with any attachments, these can be purchased separately.

All Nukeson HanBots are checked and quality assured in the UK.

Key Features:

• Dual joint module design -The unique kinematic design in the collaborative robots enables the robot to have high flexibility. The highly integrated modular design minimises the arm weight.
• Optimised singularity - Theunique arm design not only avoids the product homogeneity, but also reduces the singularity.
• Modularity -All-in-one module of fully self-developed reducer, motor, encoder, drive and software.
• High flexibility -The collaborative robot with 4/6-axis coaxial structure has almost reached the flexibility of 7-DOF robots
• High accuracy positioning - up to ±0.05mm
• Camera System - Internal wiring enables the robot to have better anti-interference ability and supports fast deployment.
• Internal Wiring - connected to the AI vision system through internal wiring, which reduces the number and length of external cables, simplifies the wiring process, and avoids problems of tangled wires and signal interference.
• High Sensitivity, Much Safer - With IP66 protection, Elfin-Pro robot can be adapted to different production environments which further extending the range of applications.
• High speed movement - speed of up to 90 degrees per second
• Simple controls - Single control box / panel to control multiple Elfin robots
• Light weightdesign - Cobot weighs between 17kgs to 45kgs with a standard working load capacity from 3kgs to 15kg
• Standard IP54 modular design using aluminium alloy and ABS plastic
• working up to an ambient temperature of 50°C
• Intelligent stopping - A default force setting to ensure an automatic stop when encountering an unexpected obstacle
• Flexible and can be used in multiple locations and for multiple task

Potential Applications for Your Collaborative Robot

• Pick and place
• Screw driving
• Painting
• Polishing
• Welding
• Palletising
• Packing
• Inspection
• CNC loading/unloading
• Assembly
